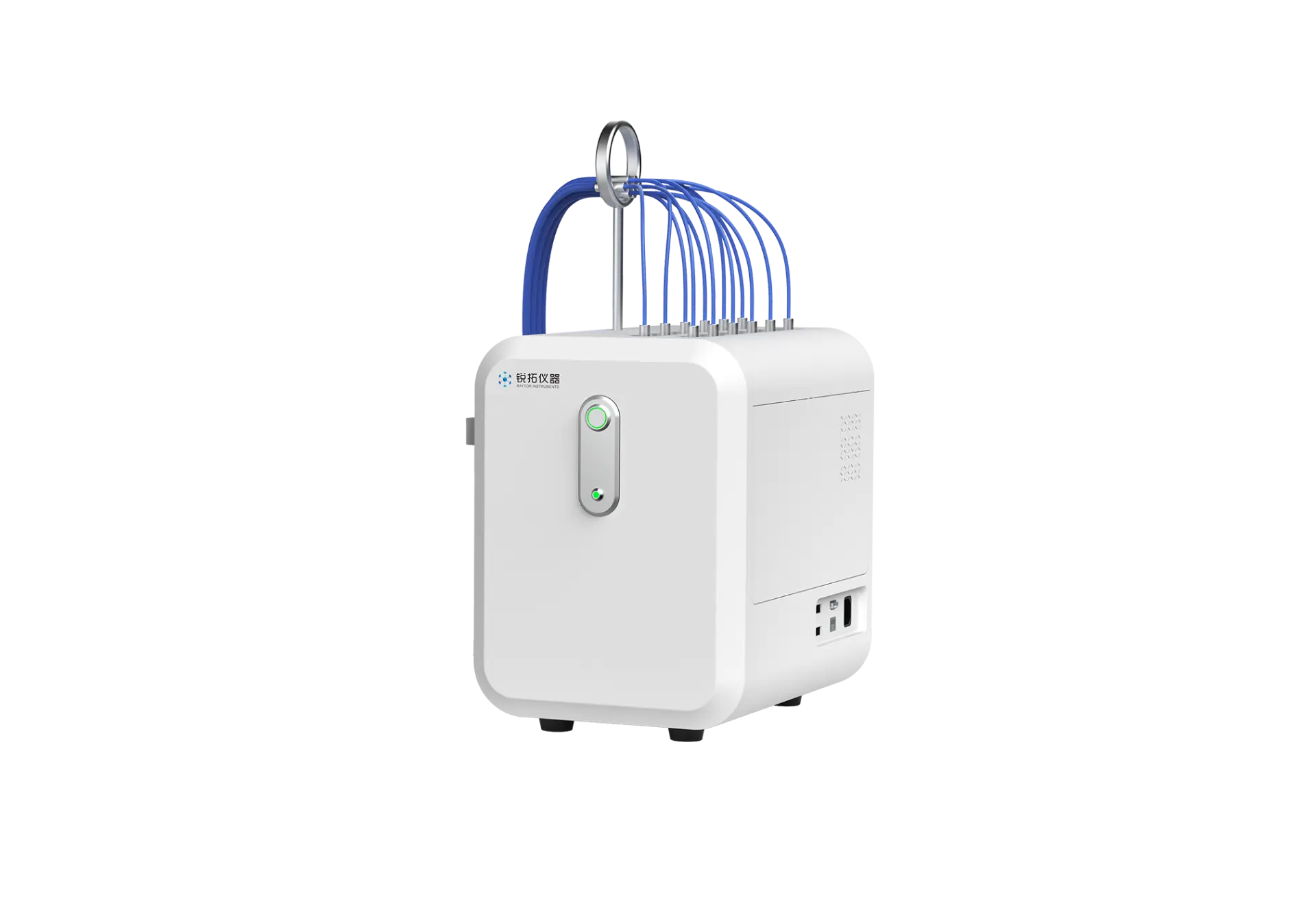

NCE DP6 In-situ Fiber Optic spectrometer
The NCE DP6 in-situ fiber spectrometer combines a deuterium light source with a photodiode array detector to capture key insights into drug dissolution in real time with in-situ fiber technology.
Learn More
Get Free Quote
Download Sheet
- The sampling interval can be flexibly modified
- Eliminates Complex Pretreatment
- Supports up to 6 channels of optical fiber synchronous operation
- Automated Reporting
-
Description
-
With intelligent analysis software, it can accurately analyze the dissolution and penetration behavior of drugs in the physiological environment, accelerate the early screening of drugs, optimize the formulation, ensure the quality of drugs, and provide key data for your drug research decision.
Features
The sampling interval can be flexibly modified
The dissolution dynamics in the medium can be accurately captured within 5 seconds for fast-release samples, which can reflect the drug release behavior in real time.
Eliminates Complex Pretreatment
Measures concentration directly in the analytical medium, enabling fully automated, 24-hour unattended operation.

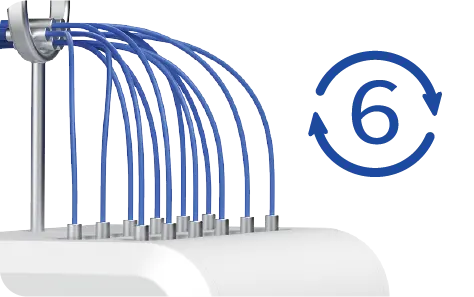

Supports up to 6 channels of optical fiber synchronous operation
Significantly enhancing analysis efficiency and ensuring data consistency and comparability.
Automated Reporting
The integrated software automatically generates detailed reports upon experiment completion, intuitively visualizing how formulations impact the dissolution, solubility, and permeability of the Active Pharmaceutical Ingredient (API).
Application
Drugs have complex dissolution and permeation behaviors in the body, so the impact of the in vivo environment on the drug needs to be considered during the early drug development or prescription modification process. For this purpose, it is necessary to construct an in vitro environment that can simulate the in vivo environment for experimental research.
-
Intrinsic Dissolution Rate Test
-
PH Shift Model
-
Permeation Model
Specifications
Product Brochure
NCE DP6 In-situ Fiber Optic spectrometer
|
Wavelength range :200-600nm |
Wavelength accuracy: ± 1nm |
|
Deuterium lamp life :>1000 hours |
Absorbance range: Up to 2AU |
|
Baseline flatness :≤0.002AU |
Minimum sampling interval :2 seconds |
|
Noise ≤ 0.002 AU(under 600nm conditions) |
Fiber channel :6 |
