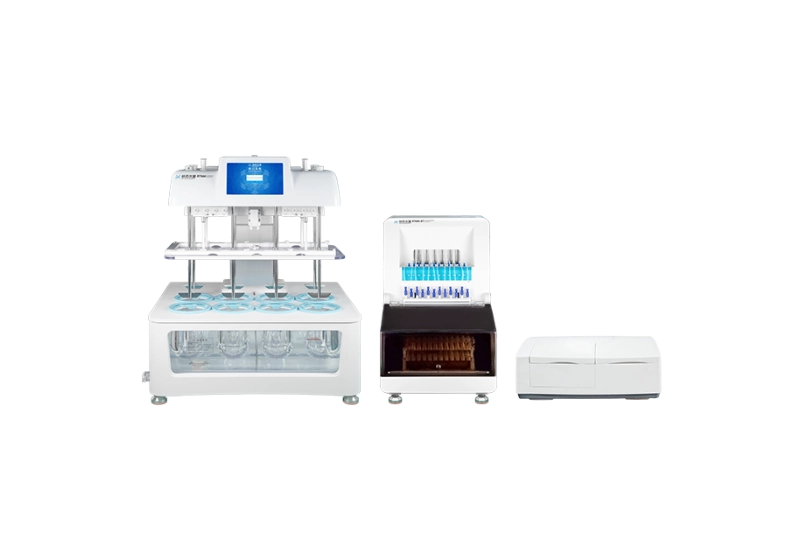

RT600-UV Online UV Dissolution System
RT600-UV is a cutting-edge pharmaceutical dissolution testing solution designed for precision and efficiency. This system integrates advanced fiberoptic technology with a high-performance UV-Vis spectrophotometer, offering real-time, in situ analysis without sample removal. The system boasts excellent linearity with R² > 0.9995 and high repeatability with RSD < 2.0% for 10 replicate tests, ensuring reliable measurements. With 6 optical channels for simultaneous monitoring of 6 dissolution vessels, it provides rapid sampling and immediate results, making it ideal for challenging media and poor stability samples. This system offers flexible, cost-effective testing for modern labs.
Learn More
Get Free Quote
Download Sheet
- Various pathlengths Support: Supports various flow cells with pathlengths from 1 to 10 mm
- Prevent cross-contamination: Individual flow cells and lines for each dissolution vessel prevent cross-contamination
- Dissolution analysis software: UV dissolution analysis software uses a multi-cell platform to generate accurate and stable data for various samples and methods
- Regulatory complexity: Software supports all regulatory requirements of 21 CFR Part 11
-
Description
-
Automatic dissolution apparatus, automatic sampling workstation and the ultraviolet-visible spectrophotometer are controlled by the same dissolution operating system in the automatic dissolution apparatus. It supports the preset and invokes the on-line ultraviolet automatic detection method for dissolution. The dissolution system will automatically complete the automatic dissolution sampling and the automatic on-line ultraviolet detection according to the preset method. The test results are fed back to the interface of the dissolution operating system in real-time, and the protected electronic data documents are automatically generated in real-time.
Features
Accurate sampling
High-precision sampling pump which can effectively provide accurate and precise sampling.
Pipeline System
Teflon pipeline system with high chemical stability and high anti-adsorption was used to avoid corrosion of sampling pipeline or sample adsorption.
Automatic Online Filtering
Dual on-line filters can be installed, and the instrument can automatically realize the function of embellish washing saturated filter.
Automatic Sample Collection
Comes with a 120-position sample tray for 1.5mL liquid phase vials and a 10mL test tube rack.
Innovative Design
Support for changing solvent volume and stirring speed during the dissolution process
Data Cloud System
Raytor cloud system can connect at least 250 different types of experimental instruments at the same time to realize intelligent management.
Application
Widely used in pharmaceutical research and quality control, drug dissolution testing plays a crucial role in evaluating drug release profiles and ensuring batch consistency. Ideal for applications in R&D labs, manufacturing processes, and regulatory compliance testing.
-
Injection
-
Ophthalmic preparation
-
Soft Capsules
-
Powder
-
Oral Preparations
-
Topical preparations
-
Enteric-coated tablets
Specifications
Product Brochure
Flow-Through Cell Dissolution Apparatus
| Length ×Width× Height: ~ 80 cm × 62 cm ×60 cm | Length ×Width× Height: ~ 80 cm × 62 cm ×60 cm |
| Number of channels: 7 | Number of channels: 7 |
| Temperature resolution: 0.1 ℃ | Temperature resolution: 0.1 ℃ |
Medium Conveying Workstation
| Length ×Width× Height: ~ 98cm × 63 cm ×55 cm | Length ×Width× Height: ~ 98cm × 63 cm ×55 cm |
| Stirring speed error: ≤± 10% | Stirring speed error: ≤± 10% |
| Velocity resolution: 0.1mL/min | Velocity resolution: 0.1mL/min |
| Temperature probe error: ≤± 0.5 ℃ | Temperature probe error: ≤± 0.5 ℃ |
Automatic Sampling Workstation
| Length ×Width× Height: ~75cm × 63 cm ×56 cm | Length ×Width× Height: ~75cm × 63 cm ×56 cm |
| Test tube type: 70 ml sample bottle, 10 ml test tube, liquid phase vial | Test tube type: 70 ml sample bottle, 10 ml test tube, liquid phase vial |
| Sampling volume error: ≤± 2% (closed-loop mode), ≤± 5% (open-loop mode ) | Sampling volume error: ≤± 2% (closed-loop mode), ≤± 5% (open-loop mode ) |
Operating System
| *Meet the requirements of FDA21 CFR Part 11 |
