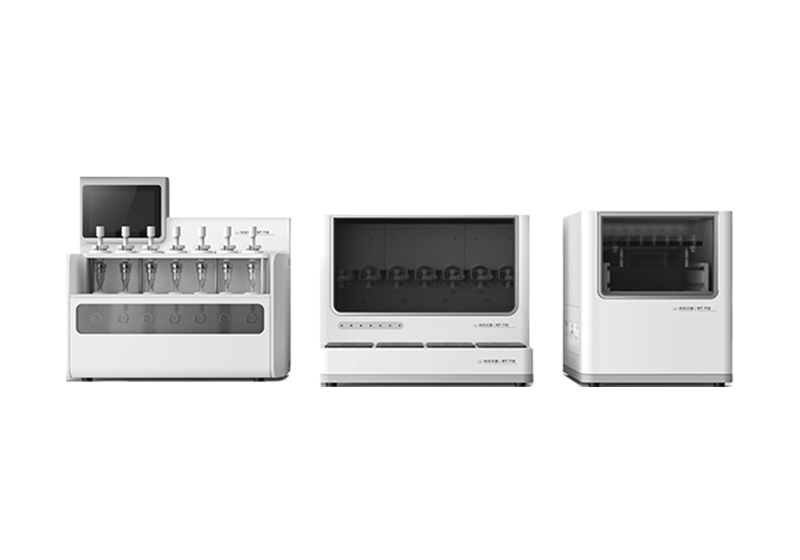

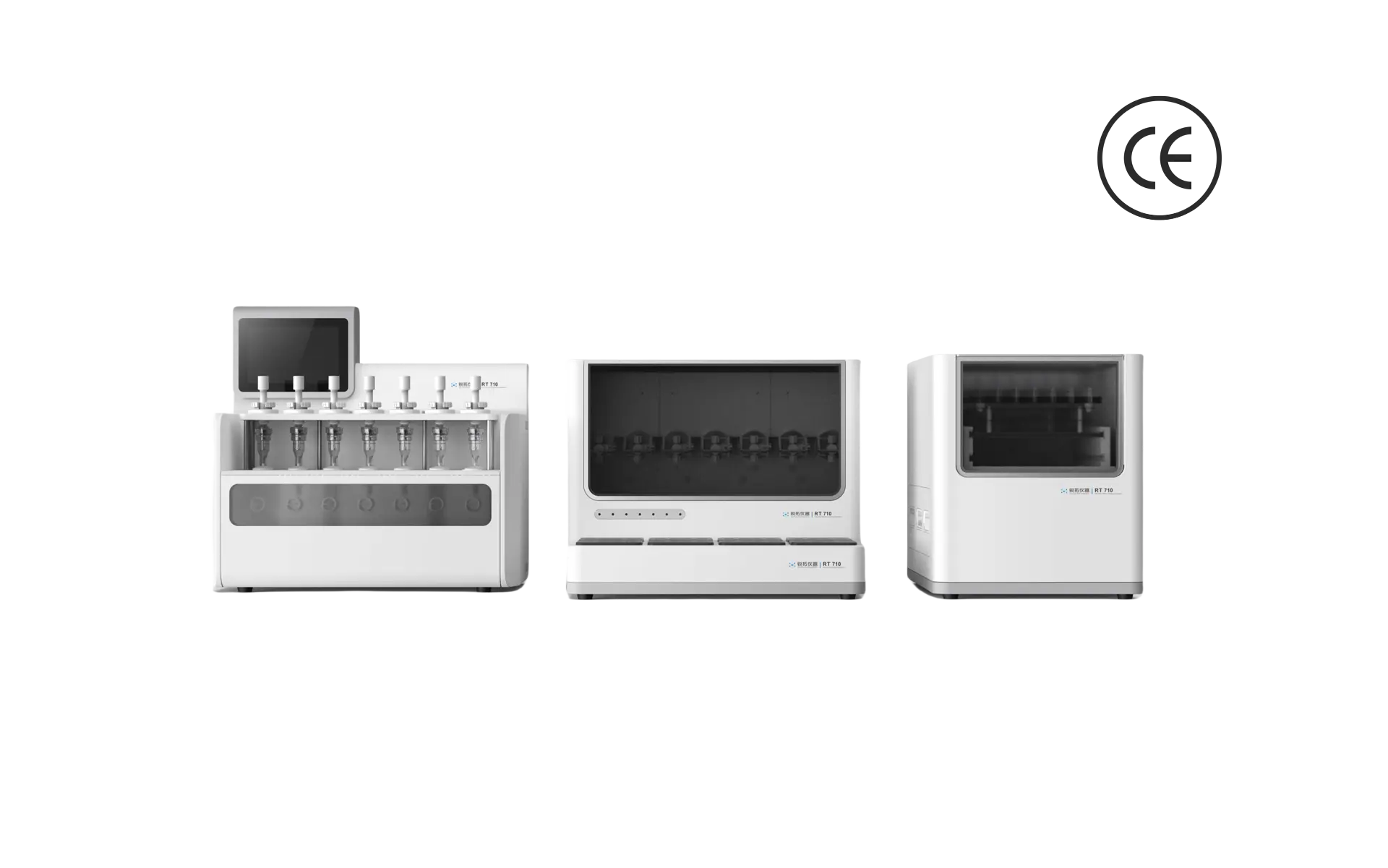

RT710 Flow-Through Cell Dissolution System
Raytor RT710 Flow-Through Cell Dissolution System include: Flow-Through Cell Dissolution Apparatus, Medium Conveying Workstation, Solvent heating workstation and Automatic Sampling Workstation. The design and performance of RT710 Flow-Through Cell Dissolution System meet the requirements of the sixth method for determination of dissolution and release in Chinese Pharmacopoeia 2020, USP dissolution apparatus 4 and European Pharmacopoeia dissolution apparatus 4. RT710 Flow-Through Cell Dissolution System can simply switch between closed-loop method and open-loop method without replacing the automatic sampling workstation, so as to meet the needs of various samples corresponding to different flow-through cell methods.
Learn More
Get Free Quote
Download Sheet
- Velocity Range: 1~40mL/min
- Sampling Volume Error: ≤± 2% (closed-loop mode), ≤± 5% (open-loop mode)
- Pump Type: syringe pump
- Number of Channels: 7
-
description
-
The design and performance of RT7 Flow-Through Cell Dissolution System meet the requirements of the sixth method for determination of dissolution and release in Chinese Pharmacopoeia 2020,USP dissolution apparatus 4 and European Pharmacopoeia dissolution apparatus 4.A single RT7 Flow-Through Cell Dissolution System can simply switch between closed-loop method and open-loop method without replacing the automatic sampling work station, so as to meet the needs of various samples corresponding to different flow-through cell methods.
Features
Dual Flow Rates
7-channel flow cell apparatus that supports testing with 2 flow rates simultaneously.
Integrated Heating
Integrated Water Bath Heating &Stirring Device can meet the experimental requirements of 7 sample medium vessels+1 replenishment medium vessel.
Real-Time Monitoring
7 independent temperature sensors, real-time monitoring of the temperature within each channel.
Pharmacopoeia Compliance
Each of the pharmacopoeia-accepted flow-through cell is available.
Teflon pipe
Teflon pipe with high chemical stability and high adsorption resistance is adopted.Effectively avoid adsorption and residue.
Multifunctional sample holder design
The sample holders suitable for70 ml sample vessel,10 mltesttube and liquid phase vial.
High precision syringe pump application
Utilizing high-precision syringe pumps. Each channel is equipped within dependent over pressure protection and liquid leakage inspection device.
Efficient filtration
Patented multiple filtration device, effectively reducing the back pressure of filtration.
Multi-mode sampling system
The closed-loop and open-loop sampling can be realized in one machine.
Filtration membrane diversity
Can provide filter membranes of different materials and pore sizes.

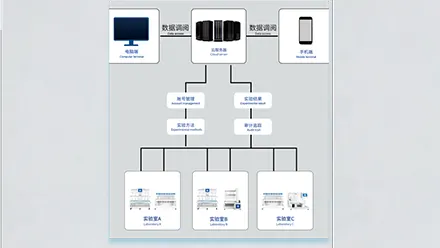

Cloud technology support
Supports comprehensive dissolution data management through cloud-based systems (automatic backup, automatic synchronization).
Application
Widely used in pharmaceutical research and quality control, drug dissolution testing plays a crucial role in evaluating drug release profiles and ensuring batch consistency. Ideal for applications in R&D labs, manufacturing processes, and regulatory compliance testing.
-
Injection
-
Ophthalmic preparation
-
Soft Capsules
-
Powder
-
Oral Preparations
-
Topical preparations
-
Enteric-coated tablets
Specifications
Product Brochure
Flow-Through Cell Dissolution Apparatus
|
Number of channels: 7 |
The temperature difference between the cell is within the range of setting value ±0.5 ℃ |
|
It can be adapted to various flow-through cell. |
Both open-loop mode and closed-loop mode are available. |
|
The temperature is adjustable, and the temperature control error is less than ±0.5 ℃ |
Medium Conveying Workstation
|
The velocity is adjustable, and the velocity error is less than ± 5% |
Rate mode: Pulsation mode(120Hz) |
|
Both open-loop mode and closed-loop mode are available. |
Solvent Heating Workstation
|
The temperature is adjustable. |
The stirring speed is adjustable. |
|
The stirring working position: 8 |
Automatic sampling Workstation
|
Number of channels: 7 |
Both open-loop mode and closed-loop mode are available. |
|
It can be adapted to 70 ml sample bottle, 10 ml test tube and liquid phase vial. |
In open-loop mode, interval sampling, continuous sampling or split ratio sampling are available. |
Operating System
| The functions meet the requirements of FDA 21 CFR Part 11,
include: account password, authority management, data management, audit tracking, data backup, etc. |
