Online UV Dissolution Analysis System for Automated Drug Dissolution Testing
2026-08-21
Why Pharmaceutical Laboratories Are Adopting Online UV Dissolution Analysis Systems
In the field of pharmaceutical quality control, dissolution testing is used to assess the release of active pharmaceutical ingredients (APIs) from various dosage forms such as tablets and capsules. More often than not, most laboratories tend to rely on lengthy and time-consuming processes that include manual sampling, filtration, dilution, and offline UV analysis.
The effort to achieve shorter and more efficient formulation development, a greater laboratory workflow, and better integrity of data has resulted in the increasing demand for the Online UV Dissolution Analysis System.
This system eliminates the drawbacks of traditional systems by integrating the following:
•Automated sampling,
•Online UV detection,
•Flow cell duty cycle dissolution analysis,
•Real-time data management.
The combination of these features allows laboratories to continuously monitor drug release with minimal disruption and decreased time between testing.
Principle of Operation of an Online UV Dissolution Analysis System
This system is based on integrating a dissolution apparatus with sample movement and UV spectroscopic analysis. The system is designed to perform the following steps:
Dissolution vessel ➝ Automated sampling ➝ Filtration ➝ Flow cell detection ➝ UV measurement ➝ Calculation of the dissolution profile
The system is designed to perform the sampling, filtration, and UV measurement processes. An integrated software system is designed to perform the analyses based on the measurements of UV absorbance. Researchers are then able to generate the dissolution profile without disrupting the system.
Retaining the original dissolution environment is vital to a successful design. There are several factors that complicate the test, including poor sampling design, excessive tubing adsorption, inconsistent sample transfer, etc. More advanced systems thus do not only include UV detection but also address the entire sampling pathway.

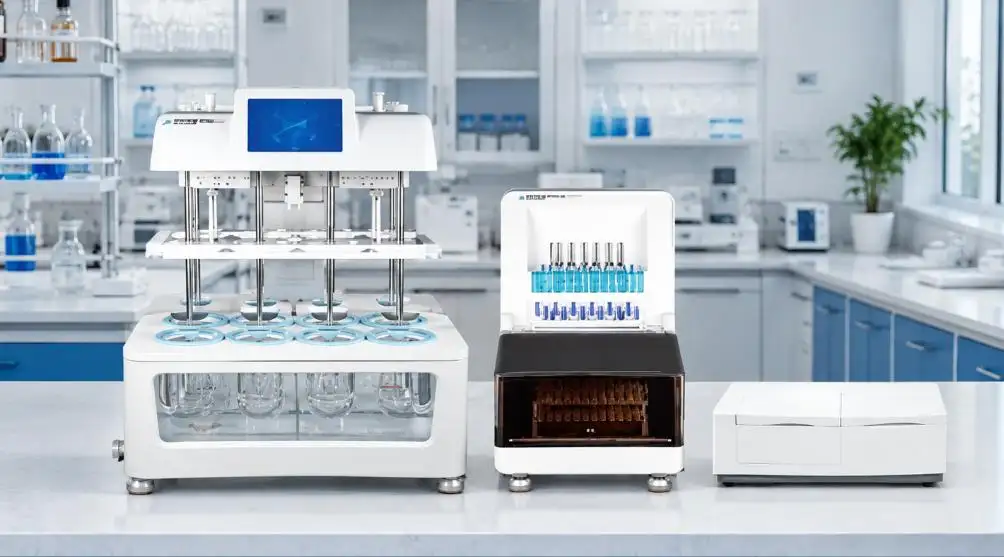

The Online UV Dissolution Analysis System from Raytor integrates dissolution testers, sampling automation, and UV-Vis analytics within a single design that enables users to control the workflow. The system is designed to accommodate flow cell path lengths of 1-10 mm. It minimizes risks of sample cross-contamination by using individual sampling lines and flow cells for each vessel during analysis of multiple samples.
Key Characteristics of Online UV Dissolution Analysis Systems
UV Detection Accuracy: More Than Just Optical Sensitivity
The performance of an Online UV Dissolution Analysis System is impacted by the match of UV detection to the characteristics of the formulation.
The main technical parameters are:
| Technical Factor | Impact on Dissolution Analysis |
| Selection of Wavelength | Impact on suitability of detection of API |
| Length of Optical Path | Impact on measurement range of absorbance |
| Linear range of calibration | Impact on reliability of concentration measurement |
| Repeatability | Impact on consistency of measurement |
A score of higher sensitivity of the system is meaningless if stable measurement results cannot be obtained through repeated tests.
Raytor's online UV dissolution technology demonstrates excellent analytical consistency through the verification testing of R² >0.9995 in the test of calibration linearity. Repeated online measurements demonstrate RSD <2.0%, confirming the automated UV analysis can achieve the same level of accuracy as manual sampling with a significant reduction of operator-related variability.
Automated Sampling Design Directly Impacts Data Reliability
One of the biggest benefits of an Online UV Dissolution Analysis System is the decrease of variability caused by manual sampling.
Conventional procedures require an operator to:
•Remove samples at exact time points
•Manually filter samples
•Measure samples
•Record results
Each step introduces variability through discrepancies in timing and errors of handling.
An automated system provides consistency through:
| Sampling Component | Technical Purpose |
| Precision sampling pump | Sampling with constant to low-variable sample loss |
| Low-adsorption tubing | Reduces API loss, sample adsorption |
| Online filtration | Detection particle removal |
| Dedicated flow path | Prevention of sample carryover |
For low concentration formulations or the adsorption of adsorption-sensitive APIs, the design of the sampling pathway may be as critical as the UV detector.
Raytor's automation of dissolution sampling processes uses low-adsorption sampling pipelines and precise sampling control solutions to enhance measurement stability during sampling.
Online UV Dissolution Analysis System vs. Traditional Dissolution Testing
It is crucial to recognize the distinctions in procedural workflows before considering features of instruments to select a suitable dissolution analysis solution.
| Evaluation Factor | Online UV Dissolution Analysis System | Traditional Offline UV Testing |
| Sampling operation | Automated | Manual |
| Data acquisition | Continuous/automatic | Individual time points |
| Operator influence | Lower | Higher |
| Testing efficiency | Higher for repeated studies | More labor intensive |
| Data traceability | Integrated software records | Separate records |
The Online UV Dissolution Analysis System is ideal for routine forms-based Quality Control (QC) testing because of its improved reproducibility. For formulation development, continuous monitoring adds depth by providing insights on the release of the drug.
Online UV Dissolution Analysis System vs HPLC Dissolution Analysis
There are dissolution analysis applications where Online UV and HPLC are not competing technologies. The comparative analysis of both technologies depends on the characteristics of the formulation and the demands of the analytical procedure.
| Comparison Point | Online UV Analysis | HPLC Analysis |
| Analysis speed | Real-time monitoring | Longer preparation cycle |
| Sample preparation | Minimal | More preparation required |
| Chemical selectivity | Depends on UV absorption | Higher specificity |
| Routine dissolution studies | Highly suitable | Used when advanced separation is required |
An Online UV Dissolution Analysis System is most useful in situations where laboratories require a rapid automatic system for profiling the dissolution of various QC batches.
Technical Factors to Consider Before Selecting an Online UV Dissolution Analysis System
A system should be evaluated considering the specific needs of a laboratory instead of individual specifications.
Dosage Form Compatibility
One must determine whether the system is able to:
•Support Immediate-release tablets
•Extended-release formulations
•Enteric-coated products
•Capsules
•Complex drug delivery systems
Multi Channel Testing Capability
High-throughput laboratories require simultaneous multi-channel testing.
Factors to consider include:
•Number of supported dissolution vessels
•Independent sampling
•Parallel UV measurement
•Unattended operation
A Lab's ability to test different formulations or batches under consistent conditions is enabled by a Multi Channel Online UV Dissolution Analysis System.
Data Integrity and Regulatory Compliance
Many pharmaceutical labs perform complex measurement tasks without losing data integrity and provide secure, traceable electronic records.
Important features of modern software include:
•User management and permission
•Electronic records with audit trails
•Method management
•Automated reporting
Raytor's dissolution analysis software satisfies the electronic records requests in 21 CFR Part 11 and enables laboratories to comply with data integrity during automated dissolution assays.
Installation, Maintenance and Validation
An Online UV Dissolution Analysis System requires installation, system qualification and maintenance.
The Validation Protocol
| Stage | Purpose |
| IQ | Confirmation of installation |
| OQ | Confirmation of system functionality |
| PQ | Confirmation of the expected performance |
Regular maintenance may include the following:
•Checking the sampling lines and the flow cell
•Maintenance of UV calibration
•Review of software logs
A well-designed system enhances both data integrity and ease of maintenance by minimizing sample handling and variability of the process.
Choosing the Correct Online UV Dissolution Analysis System Manufacturer
Several factors must be considered by a pharmaceutical company when purchasing an Online UV Dissolution Analysis System. These factors may include:
•Relevant Dissolution Testing Experience
•UV Analysis Integration Capability
•Sampling Accuracy
•Compliance Software Features
•Validation Support
•Long-term Technical Service
Raytor provides integrated solutions for pharmaceutical testing, combining their dissolution equipment with automated sampling and UV-Vis analysis, coupled with digital data management and workflow systems. Raytor focuses on ease of use with higher testing repeatability, as well as risk reduction in other testing operations, for their pharmaceutical customer's laboratories.
For labs looking to upgrade their manual dissolution testing to automated analysis, the correct partner for an Online UV Dissolution Analysis System can provide consistent testing results with greater integrity of the data and an improved scalable analytical process. Raytor offers expert consultation and tailored solutions with an understanding of a laboratory's tested analysis requirements and what's most appropriate for the system.
FAQs
Q1. How does Raytor's Online UV Dissolution Analysis System work?
Raytor's Online UV Dissolution Analysis System integrates different types of equipment to carry out dissolution analysis. This allows users to complete the dissolution test and sample analysis while also automating the process. The system eliminates the need for laboratories to conduct sampling with a great level of detail.
Q2. How does Raytor improve accuracy of online dissolution analysis?
Raytor developed a system to control the variables of sampling, measurement of UV, design of the flow path and software to support its data analysis. They are able to achieve a great level of measurement repeatability (RSD < 2.0%) and measurement linearity (R² > 0.9995).
Q3. Will the Online UV Dissolution Analysis System reduce errors caused by manual analysis?
Yes, this system includes an automated method to collect and transport samples, filter samples, and perform measurements. This eliminates any variations due to sampling, human measurement timing, and sample preparation.
Q4. What type of pharmaceutical analysis is suitable for Raytor's Online UV Dissolution Analysis System?
This system is designed to analyze dissolution of drugs that can be tested using UV spectrophotometry.
Q5. Does Raytor support different dissolution testing methods?
The systems can be easily adapted and configured to meet the testing requirements of the user based on USP, EP and ChP dissolution methods.
