China Pharmaceutical Diffusion Testing Equipment Manufacturer : Offering Complete Franz Cell Systems

Being a Chinese manufacturer of Pharmaceutical Diffusion Testing Equipment, RAYTOR takes advantage of the flexible supply chain of laboratories and instruments, and custom product development, and advanced components, all available in China. In 2026, the value added of manufacturing in China increased by 9.2%, while high-tech manufacturing increased by 9.4%.

Within our ecosystem, we have the ability to source components and customize and iterate products for glass precision processing, electronics, temperature-control systems, sensors, and mechanical and lab instrumentation.

What Is Driving Demand for Pharmaceutical Diffusion Testing Equipment?

China has created a 30-working-day review pathway for certain innovative drug clinical trial applications. It shows China's ongoing commitment to pharmaceutical research and development. RAYTOR is positioned in the growing Chinese environment of high-technology manufacturing and pharmaceutical research.

At RAYTOR, we develop pharmaceutical diffusion testing systems to help laboratories control key experimental conditions, including temperature, stirring, membrane exposure, receptor-medium conditions, and sampling.

Typical applications include:

•   IVRT of creams, gels, and ointments;

•   IVPT of transdermal patches and topical products;

•   Test-versus-reference formulation comparisons;

•   Formulation screening and method development;

•   Studies using synthetic membranes or biological tissue;

•   Pharmaceutical research and quality-control testing.

Topical and transdermal formulations are evolving and require laboratories to have equipment that is capable of sustaining uniform conditions over different diffusion cells.

What Can RAYTOR Provide?

RAYTOR, being a Pharmaceutical Diffusion Testing Equipment Manufacturer, possesses the capability to provide complete diffusion testing systems having the following components:

•   Franz diffusion cells with precision;

•   Heating and temperature regulation devices;

•   Magnetic stirrers;

•   Touch screens;

•   Temperature sensors;

•   Manual and automated sampling systems;

•   Custom supports and cell configurations.

Depending on the method, we can discuss single-group or multi-group systems, different receptor volumes, effective diffusion areas, sampling approaches, and temperature-monitoring arrangements.

China's integrated supply chain also allows us to respond flexibly to structural modifications and accessory requirements. Nevertheless, we do not view lower procurement costs as a substitute for parameter verification, method compatibility, or qualification documentation.

RAYTOR as a Pharmaceutical Diffusion Testing Equipment Manufacturer

RAYTOR Instruments was established in 2015 with the objective of making scientific experiments easier. We focus on the research, development, production, sales, and service of laboratory scientific instruments.

Our application areas include:

•   New-compound identification;

•   Drug permeability;

•   Drug dissolution and solubility;

•   Transdermal diffusion;

•   Pre-formulation research;

•   Method development;

•   Pharmaceutical quality control.

Our systems support oral, transdermal, and subcutaneous dosage-form research. According to our internal operating records, we have worked with more than 1,000 cooperative partners, supported over 3,000 projects, accumulated more than 10,000 service and testing records, and received consistently positive customer feedback.

How RAYTOR Supports Diffusion Testing?

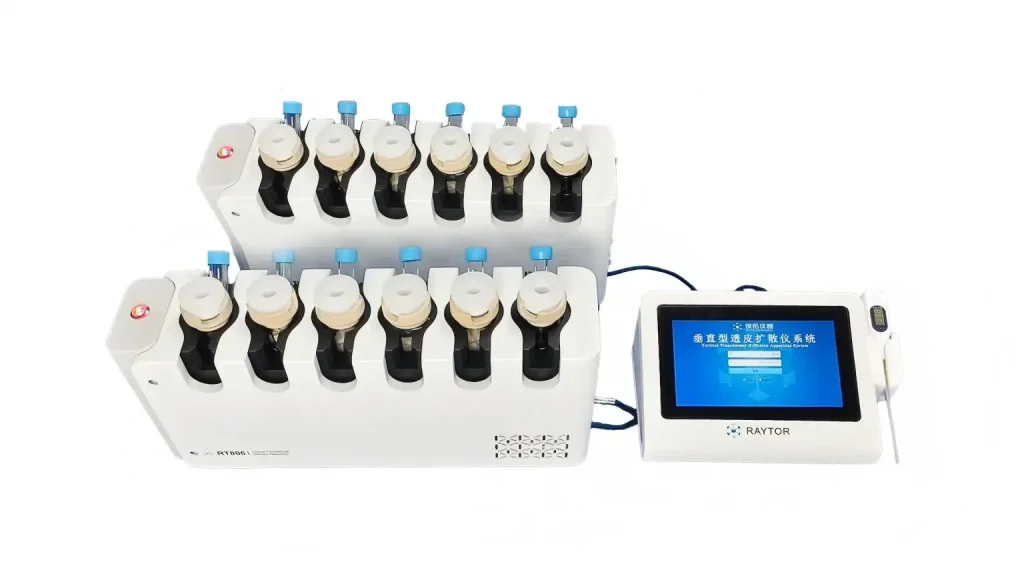

Our RT806 is a compact Vertical Franz Diffusion Cell Tester designed for laboratories that require controlled heating and stirring with manual sampling.

Its straightforward operating structure makes it suitable for method establishment, formulation screening, research, training, and lower-throughput IVRT or IVPT workflows.

Parameter	RT806 Configuration
Operation mode	Touch screen
Diffusion cells	6 per group
Temperature range	Room temperature to 55°C
Temperature error	≤±0.5°C
Speed range	200–900 rpm
Speed error	≤±10%
Sampling method	Manual
Expansion	One or more cell systems
Temperature check	Handheld thermometer with real-time display

The RT806 is designed in accordance with relevant USP <1724> descriptions and performance requirements for in vitro release and permeation testing. Laboratories should still confirm cell dimensions, membrane configuration, sampling procedures, and qualification needs for their specific methods.

How RT806 Supports Test Reliability?

The RT806 filling-point design helps reduce bubble formation during receptor-medium filling. Trapped air may reduce membrane-to-medium contact, affect the diffusion pathway, and increase variability between parallel cells.

A handheld thermometer allows users to verify actual diffusion-cell temperature in real time rather than relying only on the programmed value. One or more diffusion-cell systems can also be configured for:

•   Additional replicates;

•   Test-versus-reference comparisons;

•   Different membrane evaluations;

•   Parallel formulation screening;

•   Receptor-medium comparisons.

The RT806 can support creams, ointments, gels, and patches. However, results also depend on membrane selection, receptor-medium composition, diffusion area, temperature, stirring speed, sampling volume, and analytical procedures.

Recommended Applications and Target Laboratories for the RT806

We generally recommend evaluating the RT806 for:

•   Laboratories establishing IVRT or IVPT capabilities;

•   Research teams requiring six-cell parallel testing;

•   Users who prefer direct manual-sampling control;

•   Laboratories testing semi-solid or transdermal products;

•   Facilities requiring a compact and expandable configuration.

An automated diffusion-testing system may be the best option for high-throughput QC with continuous sampling, auto medium swapping, chromatography integration, or sophisticated electronic data handling.

Final Thoughts

A Chinese Pharmaceutical Diffusion Testing Equipment Manufacturer can offer high degrees of system configurability, design responsiveness, high-availability components, and low total cost of ownership.

Are you planning to set up an IVRT or IVPT lab? Contact RAYTOR and provide your dosage form, type of membrane, receptor medium volume, sampling frequency, and temperature range along with your compliance needs. Based on this info, we will determine whether the RT806 compact manual system or an alternate diffusion-testing system configuration is a better fit for the methods you plan to employ, your workload, and your anticipated requirements for system expansion.

FAQs

Q1. What pharmaceutical diffusion testing equipment does RAYTOR manufacture?

RAYTOR's diffusion testing equipment includes systems for in vitro release testing (IVRT) and in vitro permeation testing (IVPT). Configurations of these systems are applicable for pharmaceutical research and development, formulation, method development, and quality control.

Q2. What is the RAYTOR RT806 used for?

The RT806 Vertical Franz Diffusion Cell Tester is for IVRT and IVPT of topical and transdermal formulations, including but not limited to creams, gels, ointments, and patches. This tester has built in controlled heating, stirring, and an option for manual sampling.

Q3. How many diffusion cells does the RT806 include?

The RT806 is designed with a six diffusion cell per group configuration. This is useful to laboratories needing multiple diffusion-cell systems to provide additional replicates, comparative testing, or to meet a higher testing capacity.

Q4. Does the RT806 comply with USP <1724>?

The RT806 is compliant to the design, descriptions, and requirements of USP <1724> pertaining to in vitro release and permeation testing. It is the responsibility of the user to confirm the testing parameters, qualification documents, and cell dimensions specific to their method.

Q5. What temperature range does the RT806 support?

The RT806 has a temperature range from room temperature to 55°C. The error in temperature for the RT806 is ±0.5°C. The temperature of the diffusion-cell can be checked in real time with a handheld thermometer.
